Hoyt RX-10 Compound Hunting Bow

The RX-10 is part of Hoyt’s 2026 flagship carbon RX series, featuring the advanced HBX Gen 4 cam system that offers smooth draw cycles and high speed up to 342 fps. The bow incorporates Hoyt’s patent-pending XTS Tuning System, enabling precise horizontal and vertical tuning without a bow press, correcting left/right as well as high/low arrow flight issues for perfect arrow flight. The RX-10 has a stiff carbon riser with the strongest strength-to-weight ratio, natural point-of-aim design for precision, and features hard wall and extra hard wall back wall options for perfect pre-shot feel. It is optimized for treestand and mobile hunters who want a compact, faster bow with a short 30.5-inch axle-to-axle length and 6.125-inch brace height.

Key Specs:

• Speed: 342 fps IBO

• Axle-to-Axle Length: 30.5″

• Brace Height: 6.125″

• Let-Off: 75%, 80%, or 85%

• Weight: 4.1 lbs

• Draw Length: 25″–30″ (adjustable in 0.25″ increments)

• Max Draw Weight: 40-80 lbs

• Available in Right and Left Hand

• Cam: HBX Gen 4

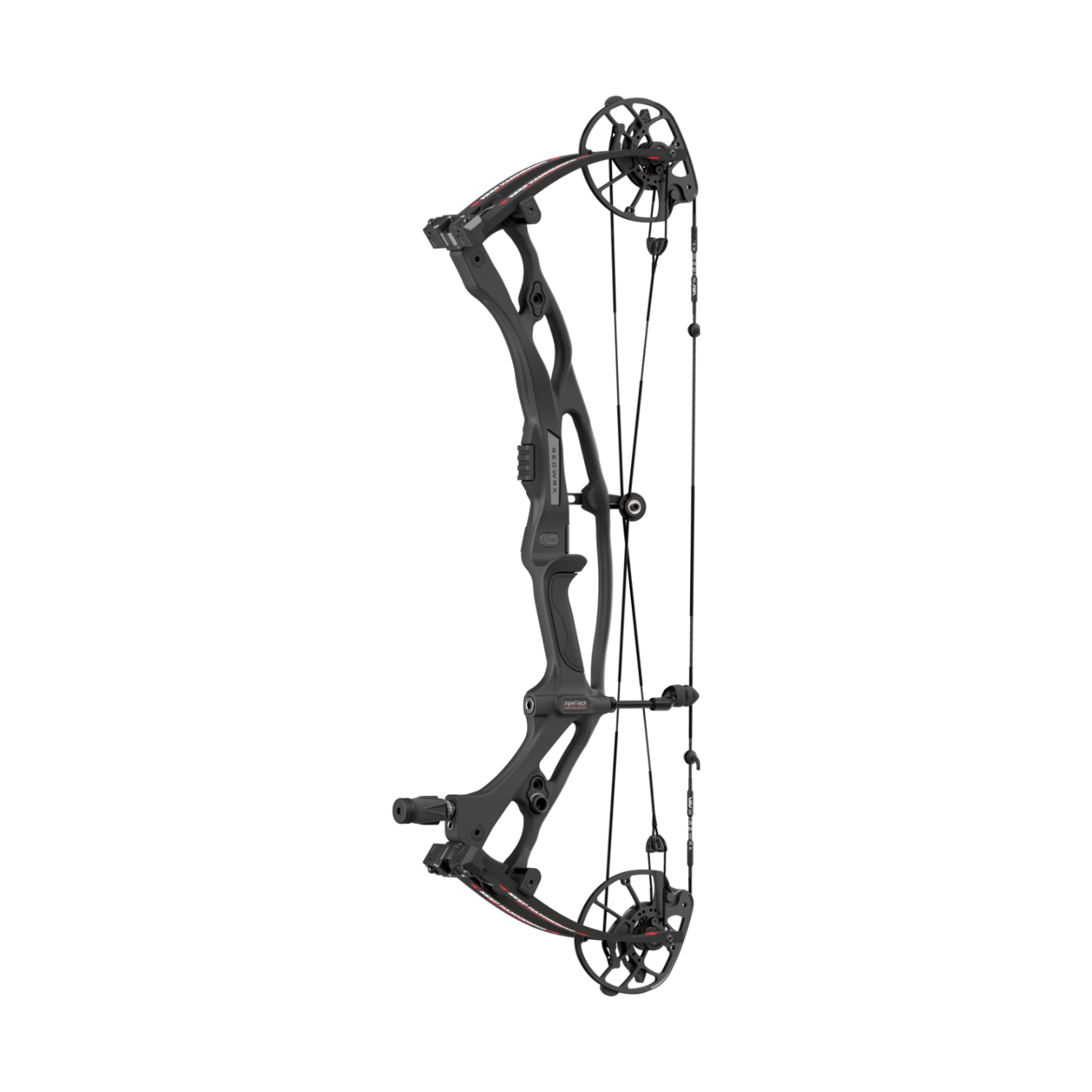

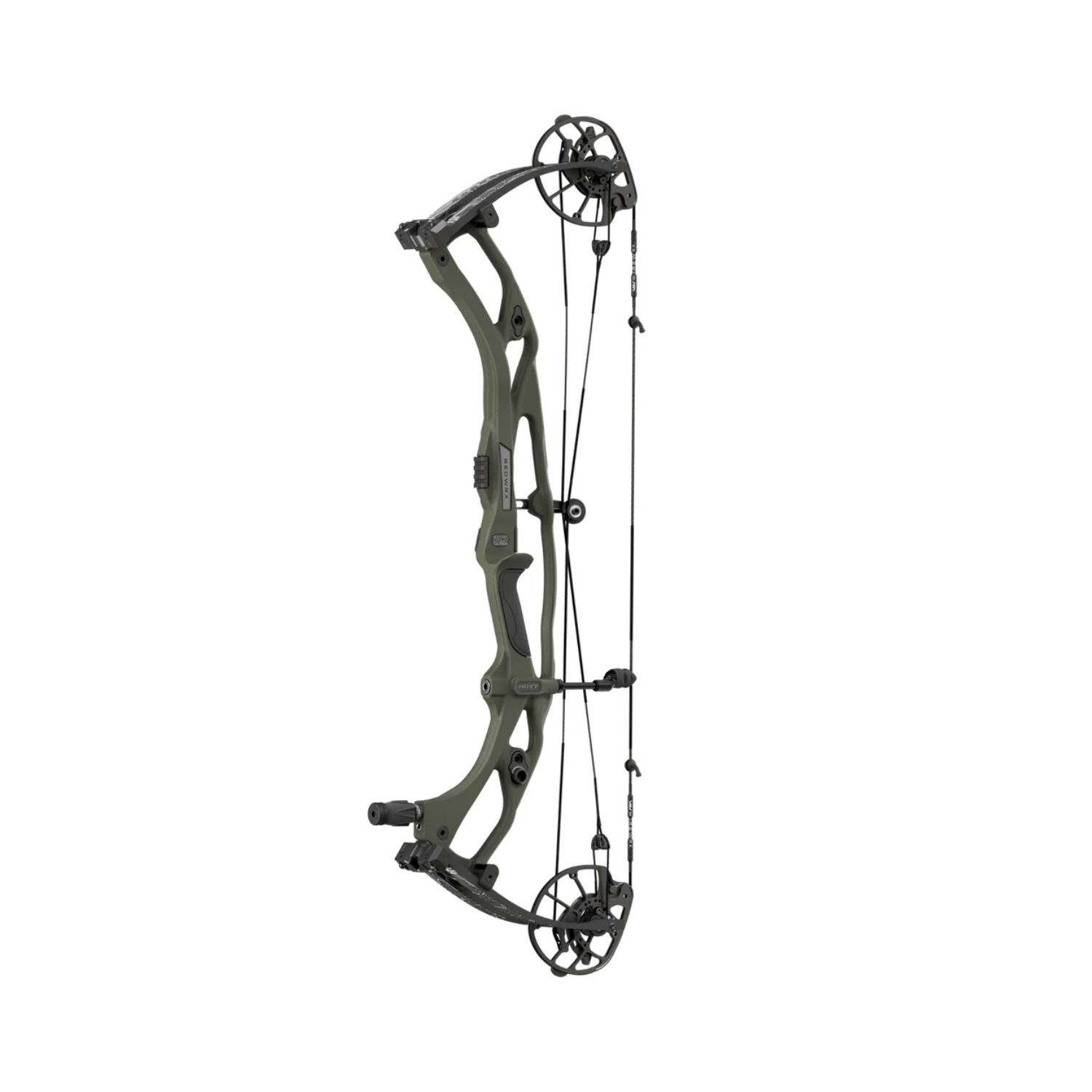

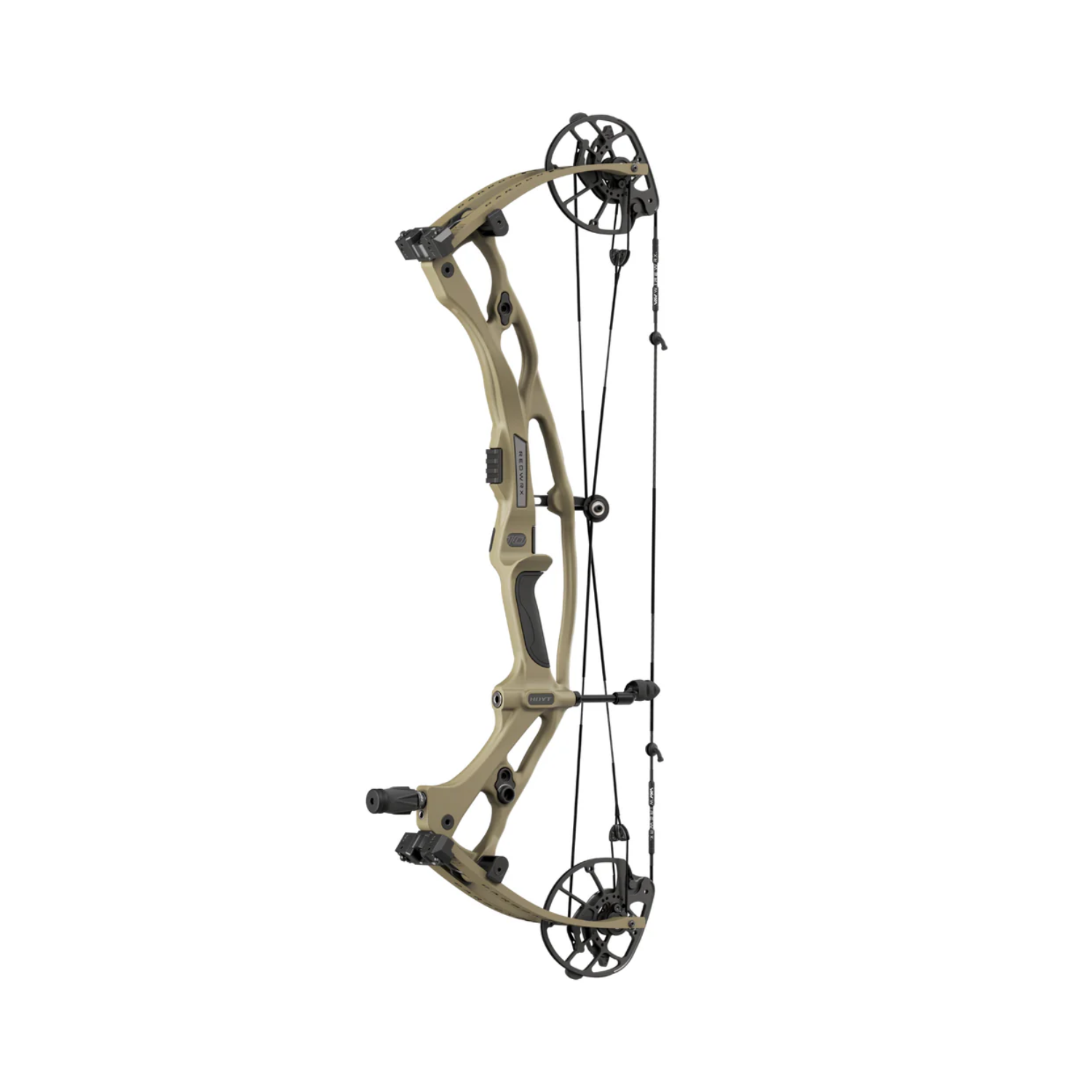

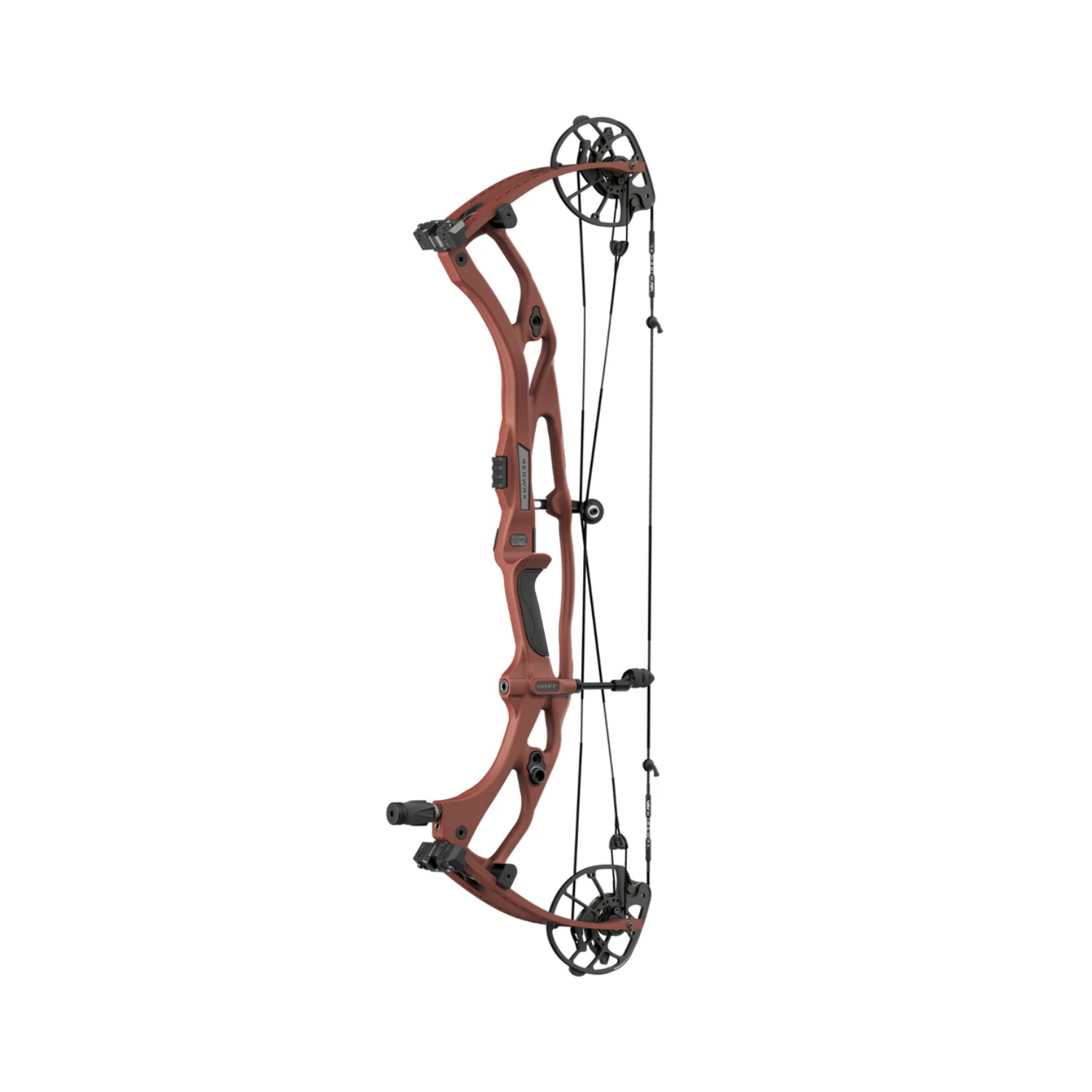

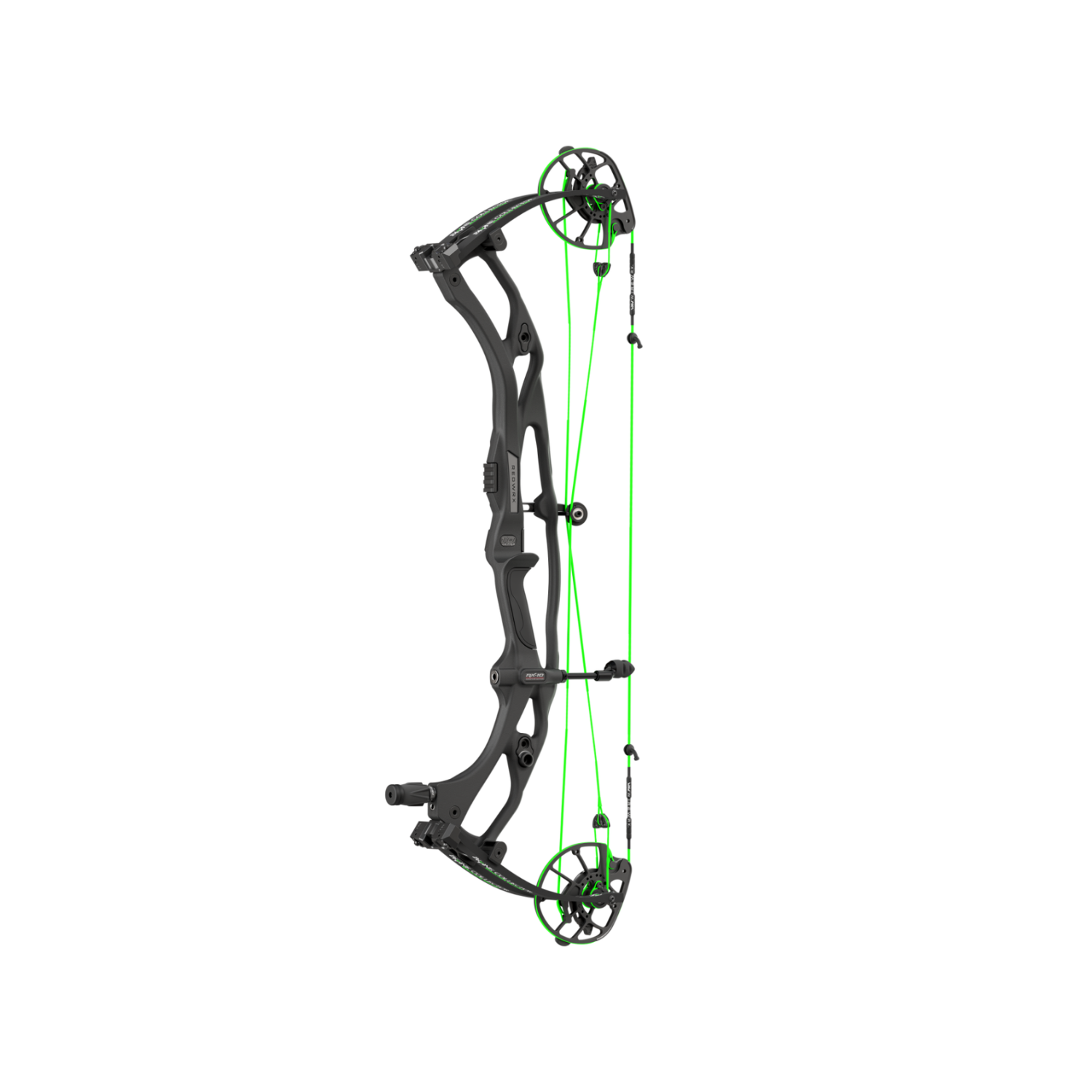

• Riser colors available include Wilderness, Tombstone, Blackout, Sandstorm, Georgia Clay, plus camo finishes (Realtree APX, Mossy Oak Bottomland, Kuiu Verde, Optifade Subalpine) with an extra $100 for camo

Variations:

• RX-10 (standard)

• RX-10 Ultra

• RX-10 Ultra LD (Long Draw)

• RX-10 SD (Short Draw)
  All with the XTS Tuning System and HBX Gen 4 cam technology.

The bow is compatible with Hoyt’s full lineup of in-line accessories such as Pro Series stabilizers, Axcel drivers, QAD rest, SuperLite quivers, and more. The carbon riser delivers warmth to the touch and premium durability, proven through extensive dry-fire testing.
